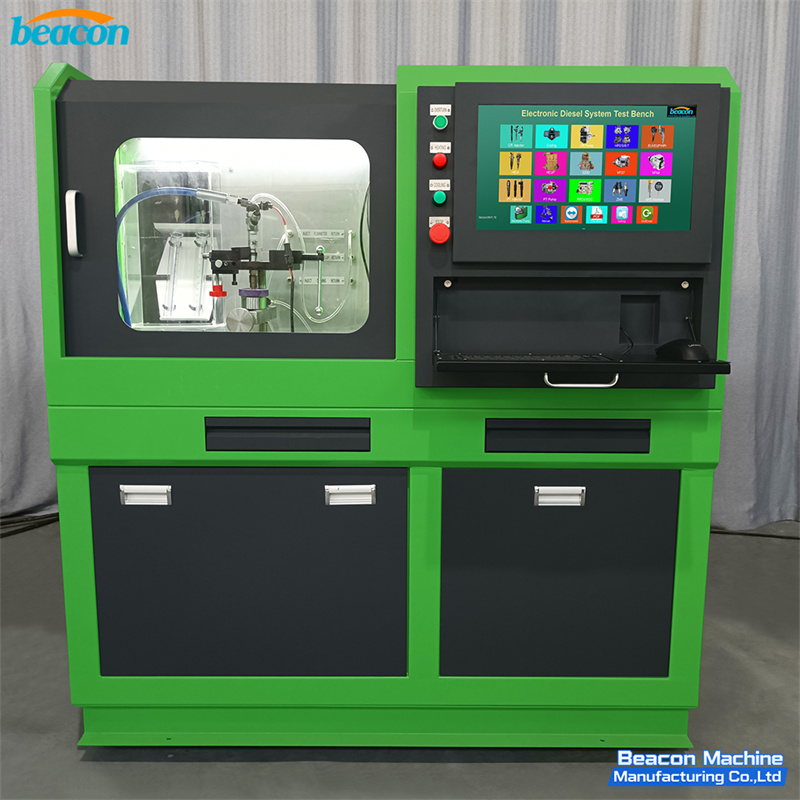

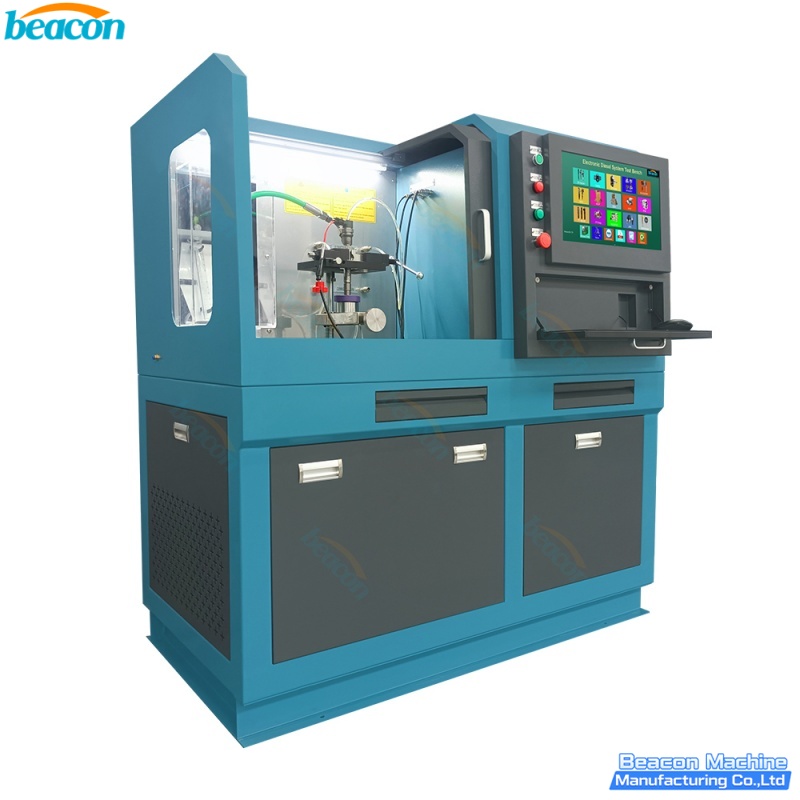

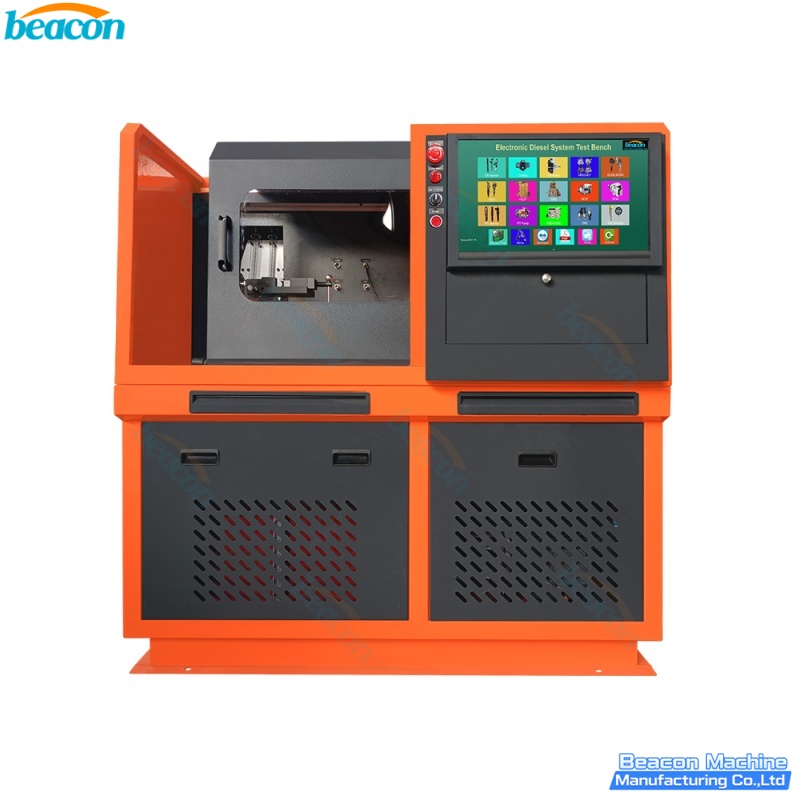

CR309 Banco Pruebas Inyectores Common Rail 4KW

The BEACON CR309 common rail injector test bench is a compact 4KW entry-level testing platform designed for workshops that focus primarily on common rail injectors, with optional modules for CR pumps and other diesel injection systems.

Standard Configuration and Optional Modules
The CR309 integrates testing for solenoid and piezoelectric common rail injectors, with built-in IQA coding function. Optional modules include Common Rail pump testing, HEUI medium pressure injector and actuation pump testing, CAT 320D high-pressure pump testing, EUI/EUP/HPI cam box testing, VP37/VP44/RED4, Denso V3/V4/V5, AHE dynamic stroke measurement, and pump nozzle testing.

1. Common Rail Injector Test (Standard)

Tests solenoid and piezoelectric common rail injectors with more than 7,500 pre-loaded test data records covering Bosch (2,493 entries), Denso (4,287 entries), Siemens (171 entries), Delphi (449 entries), Caterpillar (17 entries), Cummins (54 entries), and MTU (19 entries). Supports all major global injector brands.

2. Piezoelectric Injector Test (Standard)

Tests the latest generation piezoelectric injectors with charge-discharge cycle measurement, response time, and injection quantity at multiple rail pressure points.

3. IQA Coding Function (Standard)

Built-in IQA coding database with 4,185 pre-loaded codes covering Bosch (1,174), Denso (2,375), Siemens (160), Delphi (438), and Cummins (28). Supports coding value writing and adjustment for remanufactured injectors.

4. Test 2 or 4 Injectors Simultaneously (Optional)

Test 2 injectors at the same time with additional flow sensor, high-pressure oil pipe, solenoid valves, filter elements, and dual injector fixture. Test 4 injectors simultaneously configuration also available with 4-injector accessory kit.

5. Common Rail Pump Test (Optional)

Tests Bosch CP1, CP3, CP4 and other high-pressure common rail pumps with adjustable speed range and pressure control.

6. HEUI Injector and Actuation Pump Test (Optional)

Tests Caterpillar HEUI injectors including C7, C9, 3126B, 3116 series, and associated actuation pumps for heavy equipment fuel systems.

7. EUI / EUP / HPI Test with Cam Box (Optional)

Tests Electronic Unit Injectors (EUI), Electronic Unit Pumps (EUP), and HPI systems using the cam box module. Compatible with Caterpillar, Cummins, Detroit Diesel EUI/EUP systems.

8. Optional Modules - VP37 / VP44 / RED4 / Denso V Series / 320D

Optional test modules include VP37, VP44, RED4 (VW/Audi), Denso V3/V4/V5 pumps, Caterpillar 320D high-pressure common rail pump, AHE dynamic injector stroke measurement, rail pressure sensor test, DRV/VPH test, solenoid valve test, and electric measuring cylinder.

Multilingual Control System

The integrated control system supports 15 languages including Chinese, English, Spanish, Finnish, French, Italian, Korean, Polish, Portuguese, Russian, Simplified Chinese, Turkish, Bosnian, Arabic, and Croatian. Custom main interface options and customer LOGO are supported.

Application Coverage

The CR309 test bench is widely used in automotive repair workshops, fuel injection service centers, technical training schools, and small-to-medium OEM production lines. Compatible with injectors for Mercedes-Benz, BMW, VW, Audi, Ford, Toyota, Hyundai, and other passenger and light commercial diesel vehicles.

Technical Specifications

Main engine power 4KW, heating tube power 1KW, circulating pump power 0.18KW, power supply 220V/380V, solenoid valve drive current 0-30A, frequency 50Hz/60Hz, maximum pressure 2800bar. Working temperature -10 to 50 degrees Celsius, humidity 15 to 95 percent. Machine dimensions approximately 145x110x175 cm, packing dimensions 155x100x179 cm.

Warranty and Delivery

One-year warranty with lifetime technical support. Non-human damage within one year is covered by free accessory replacement. Delivery time 3-4 weeks. Plywood case packaging included.

1. Cobertura Integral de Pruebas - CR309 cubre pruebas de inyectores Common Rail con mas de 7500 datos precargados y modulos opcionales de bomba CR HEUI EUI EUP CAT 320D para cobertura completa del sistema de inyeccion diesel.

2. Codificacion IQA Integrada - 4185 codigos precargados para codificacion y ajuste de inyectores Bosch Denso Siemens Delphi Cummins en talleres de remanufactura.

3. Compatible con Inyectores Piezoelectricos - Prueba inyectores piezoelectricos de ultima generacion con medicion completa del ciclo carga-descarga y analisis de presion multiple.

4. Diseno Compacto 4KW - Configuracion de potencia basica ideal para talleres pequenos y medianos y centros de servicio con espacio limitado.

5. Interfaz Multilingue - 15 idiomas incluyendo ingles espanol ruso chino frances aleman italiano coreano polaco portugues turco bosnio arabe croata finlandes.

6. Cobertura de Aplicacion Global - Usado en talleres automotrices y centros de servicio en todo el mundo para mantenimiento y reparacion de inyectores diesel Mercedes BMW VW Audi Ford Toyota Hyundai.
